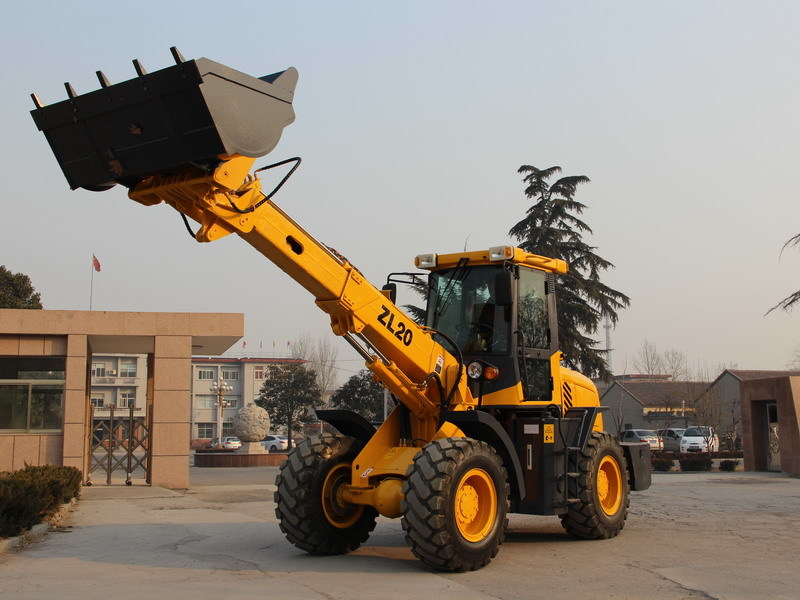

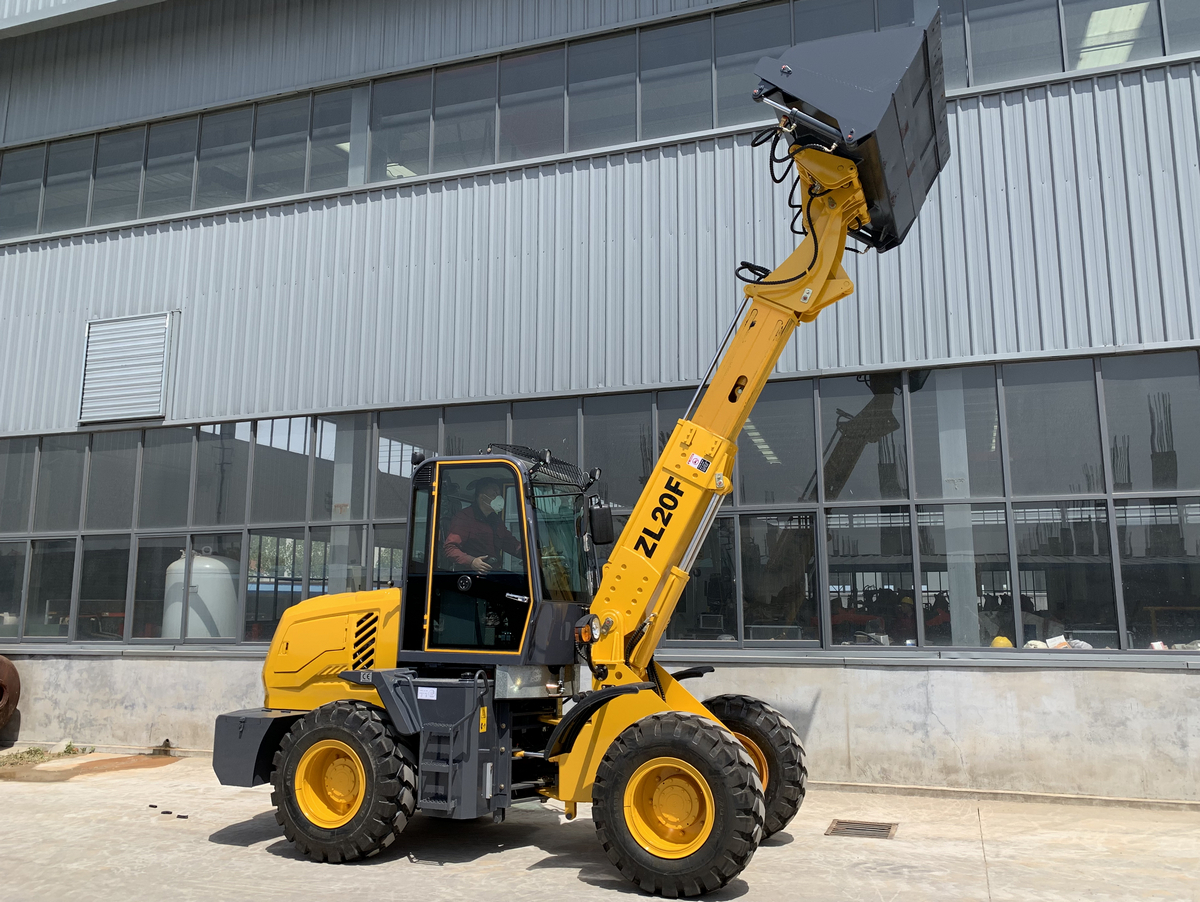

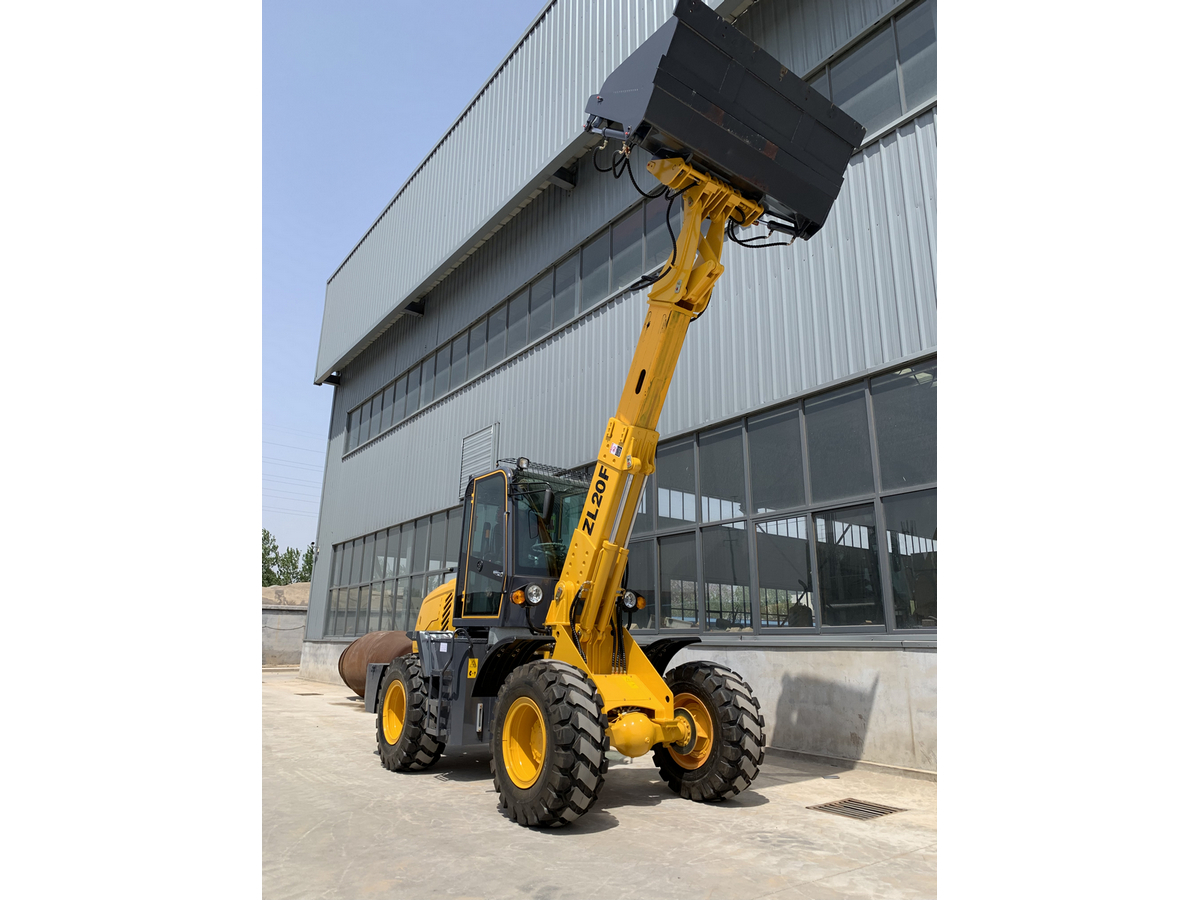

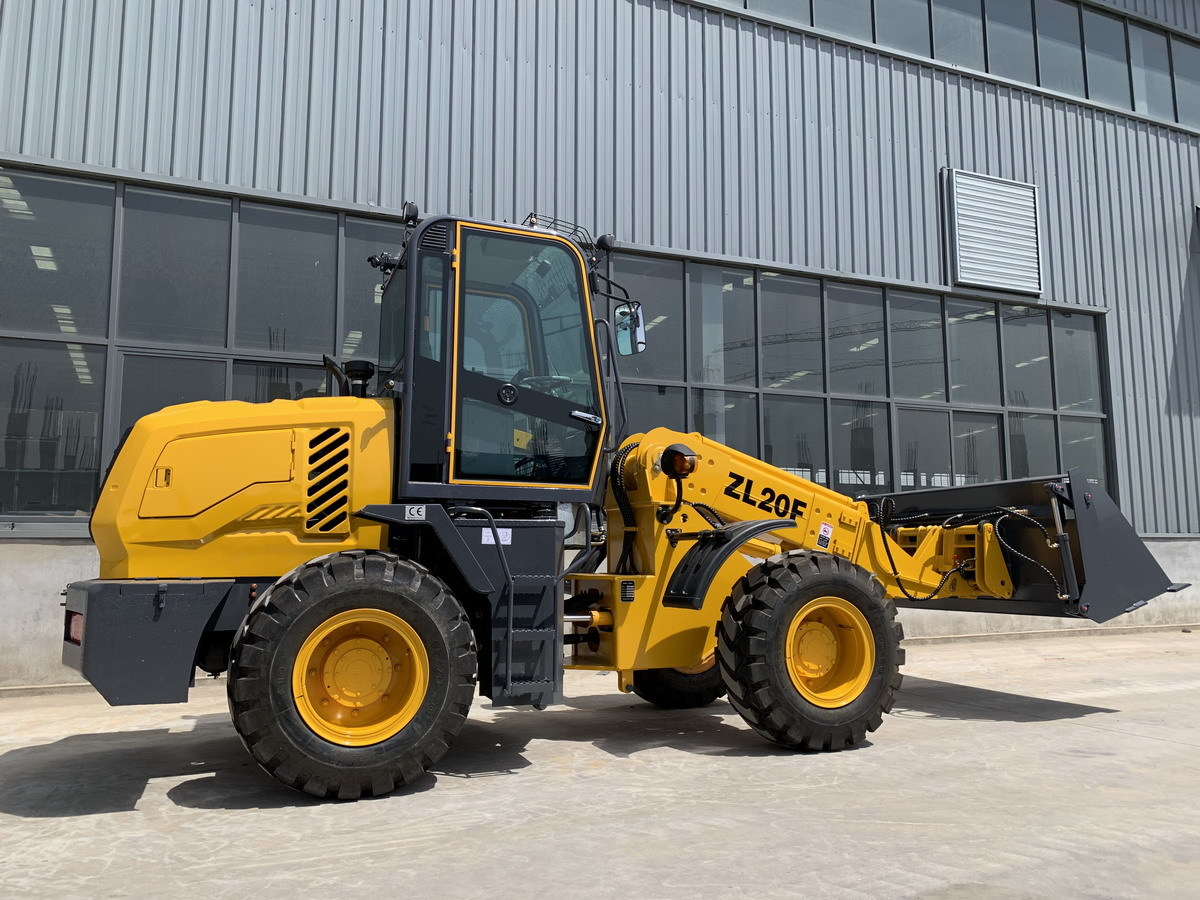

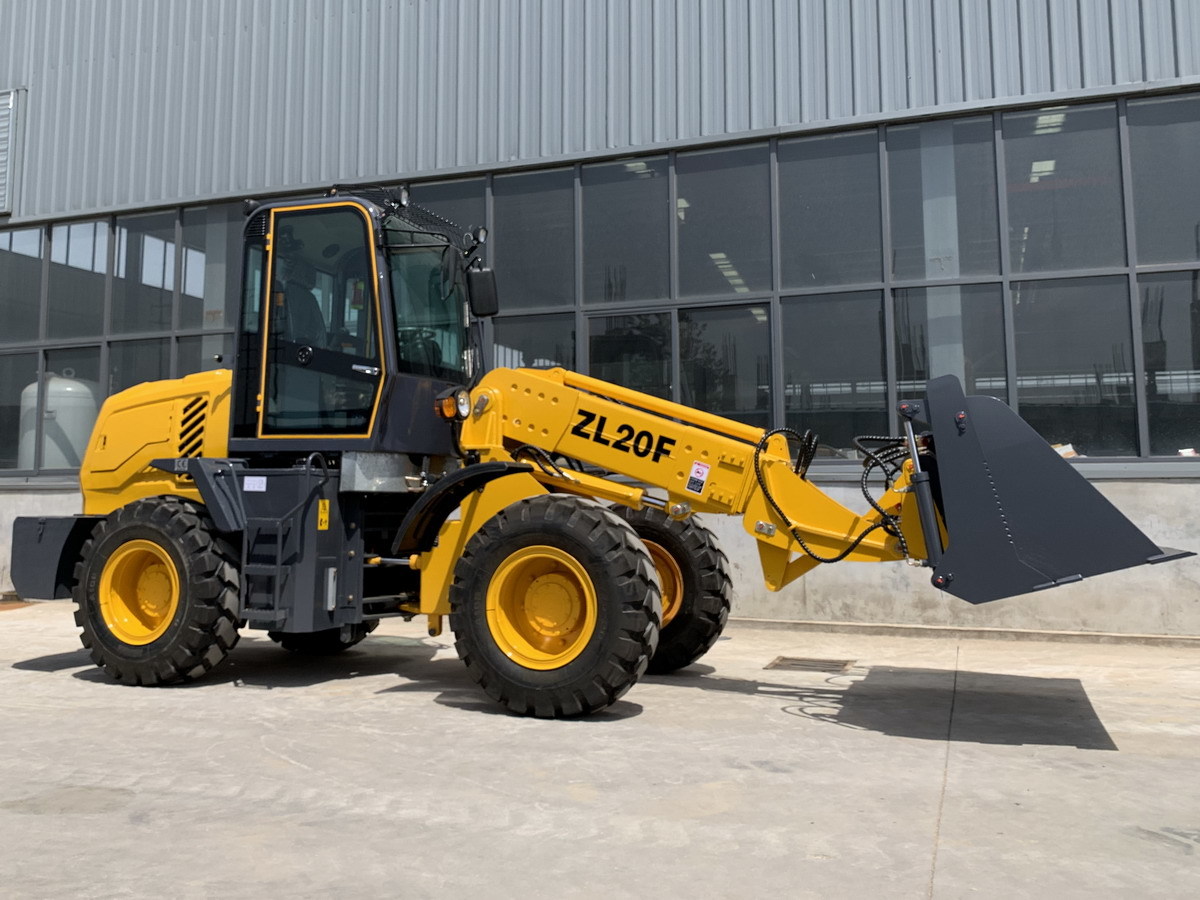

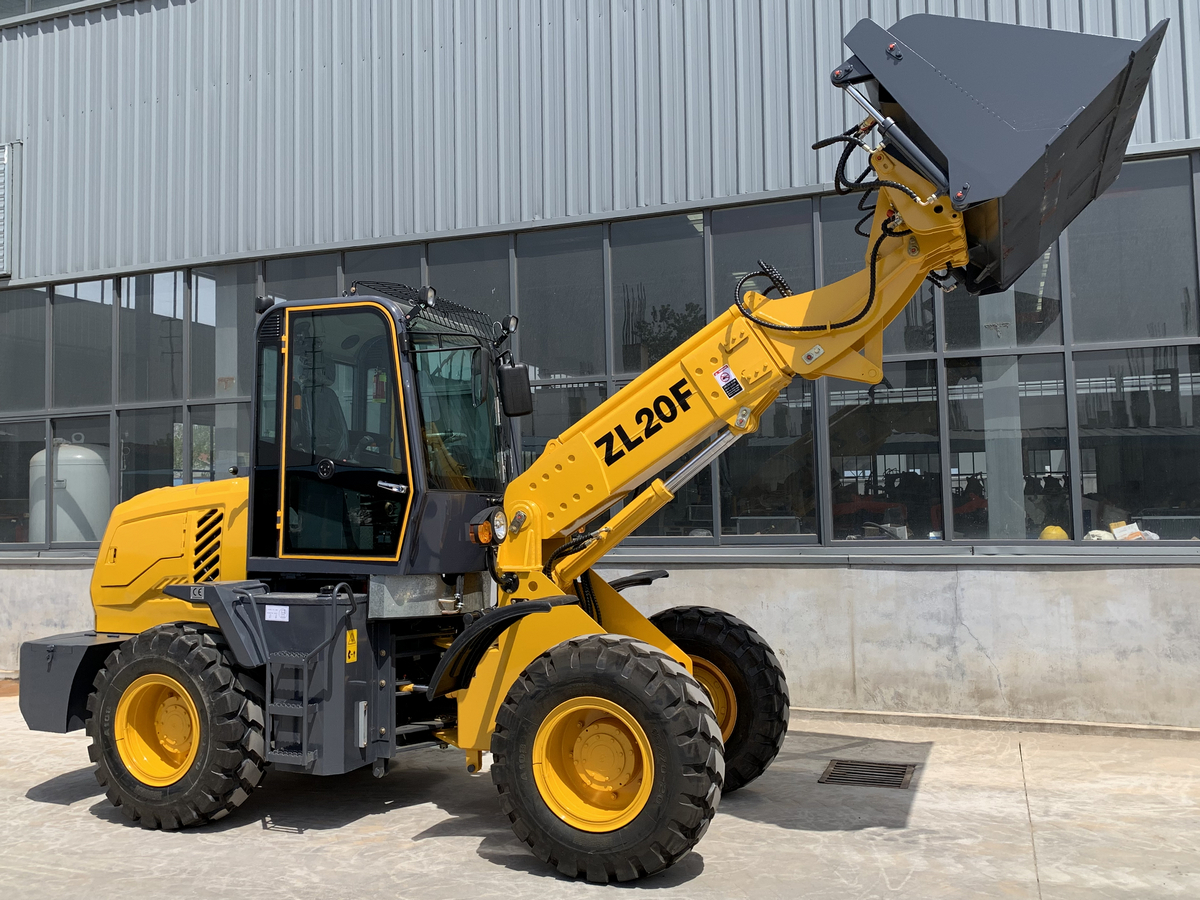

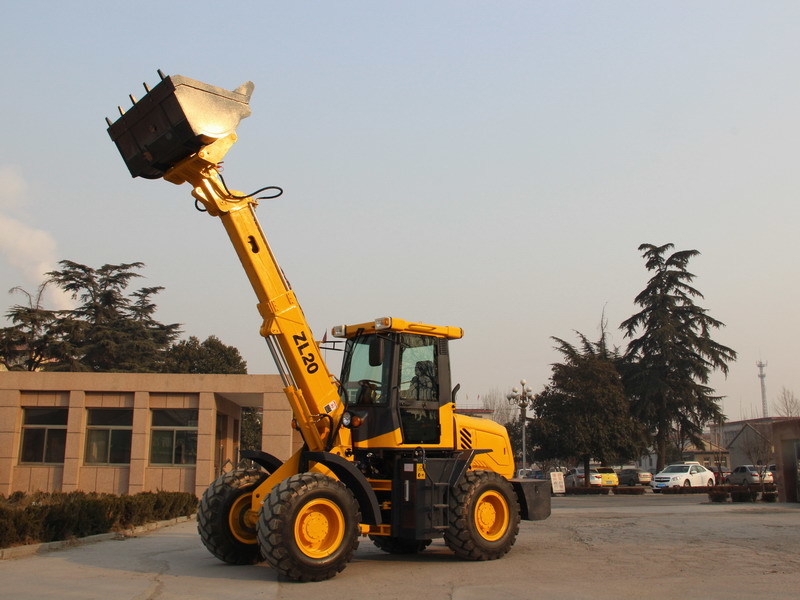

Check the technical data of the unit, picked out from the catalog of QINGDAO PROMISING Telescopic wheel loader.
offers excellent transport solutions for business and individual needs.
The vehicle was manufactured in 2024.
Gross weight: 5750 kg.
Engine/driveline: Euro 2, diesel, engine cylinders: 4, 82 hp, engine: YUNNEI YN38, gearbox: manual, transmission: torque converter, battery: 24V/80Ah, hydraulic tank capacity: 220 L, number of hydraulic valves: 4, working pressure: 20 MPa.
Chassis configuration: suspension: spring, 4x2, 2-axle, all-wheel drive, wheel base: 2430 mm, brakes: disc, air brakes, front tires: 0.40Mpa, rear tires: 0.35Mpa, tires: 16/70-20-16PR, track width: 1470 mm, new tires, fuel tank: 60L.
Cab design: cabin, cab type: day cab, working lights, heater, seat belts, radio, MP3.
Body: body: Articulated Frame, body material: steel, loading width: 1800 mm, loading height: 4500 mm, loading volume: 1 m³, tank volume: 80 L, number of tank compartments: 1, tool box.
Payload: 2000 kg.
Transport dimensions: length – 6100, width – 1870, height – 2720.
Mileage: 5 km.
Machine hours: 5.
Lift capacity: 2000 kg.
Lifting height: 4500.
Accessories: Mulitple Options.
The parking site is in China.
